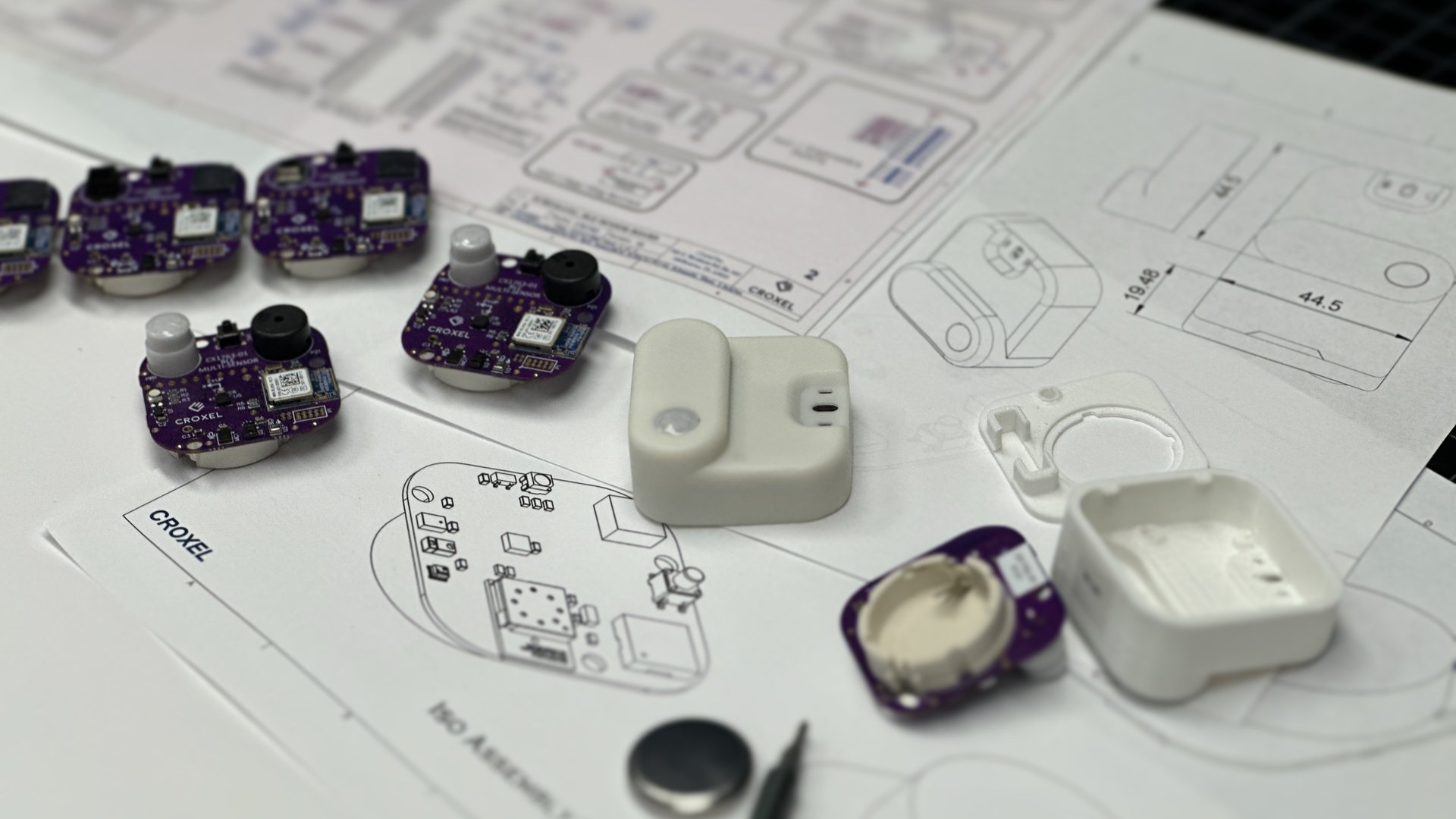

KIOTE/11 is a cellular IoT development engine with all of the building blocks your team needs to quickly develop cellular IoT products from concept, through prototype and into production.
Designed for flexibility with a full suite of onboard sensors, KIOTE/11 can be deployed in a wide range of applications in record time.
KIOTE/11 is built around the cutting edge, compact and highly-integrated nRF9160 “System-in-Package” (SiP) by Nordic Semiconductor, a world-wide leader in wireless semiconductor technologies.
KIOTE/11 is an LTE-M Cat M1 / NB-IoT Cellular IoT multi-sensor node with integrated GPS receiver
General Features
● Multi-sensor cellular IoT node including GPS
tracking
● Flexible and customizable design for a wide
range of applications:
o Expansion ports for controlling and
monitoring external devices
o Small board suitable for multiple form
factors
o Adaptable to any AC or DC power input
requirement including solar, automotive or
industrial

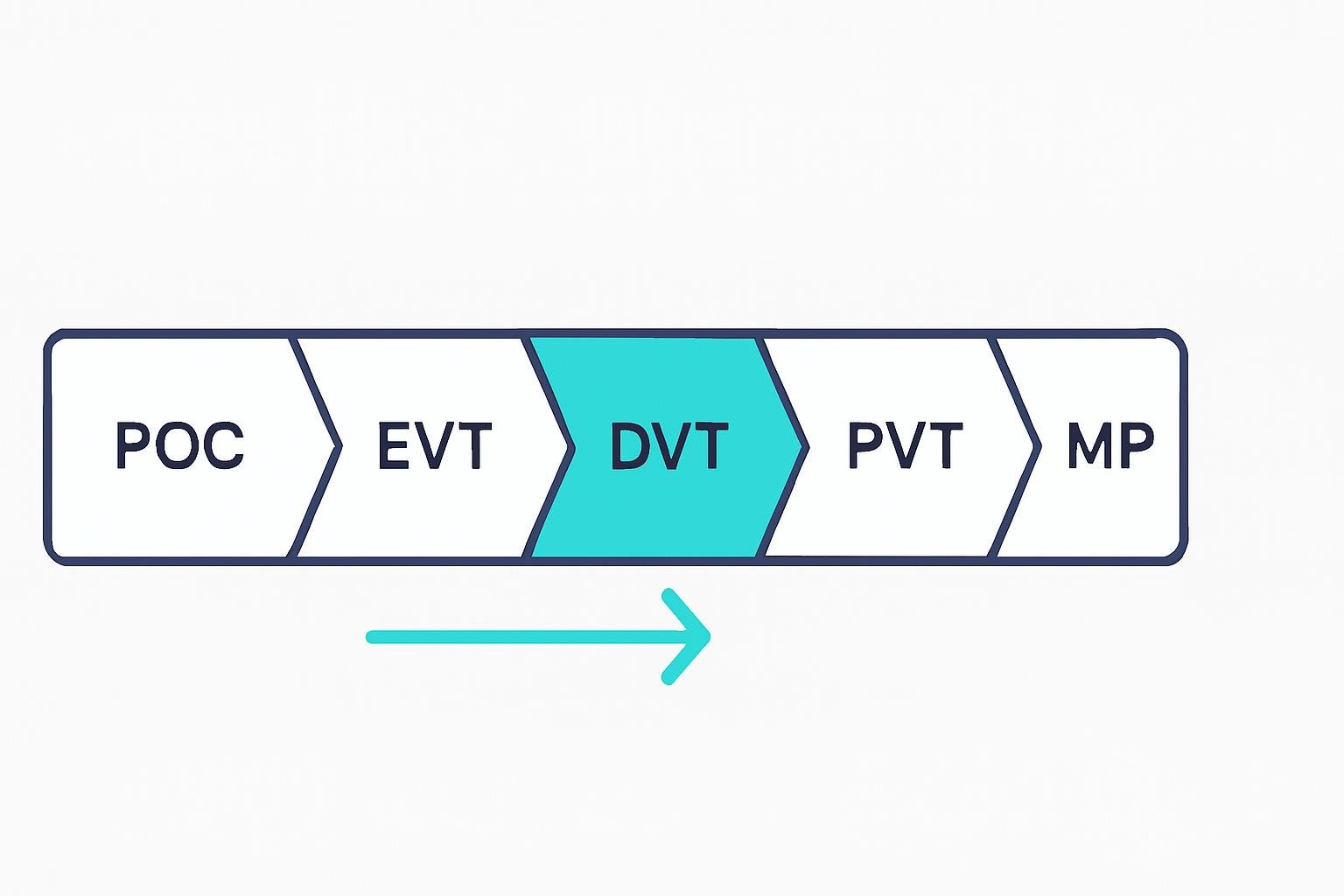

● One solution for every development phase:
proof of concept, first run prototypes and
customizable for production
● End to end solution integrating Hardware & Firmware
● Cloud hosted IoT platform software
● Low power mode that can last years without
battery recharge or replacement
● Deploy autonomous cellular IoT nodes by
integrating a small solar power cell
tracking
● Flexible and customizable design for a wide
range of applications:
o Expansion ports for controlling and
monitoring external devices
o Small board suitable for multiple form
factors
o Adaptable to any AC or DC power input
requirement including solar, automotive or
industrial
● One solution for every development phase:
proof of concept, first run prototypes and
customizable for production
● End to end solution integrating Hardware & Firmware
● Cloud hosted IoT platform software
● Low power mode that can last years without
battery recharge or replacement
● Deploy autonomous cellular IoT nodes by
integrating a small solar power cell
Technical Features
Hardware
● Nordic nRF9160 Low Power System-in-Package
o LTE CAT M1/NB-IoT Modem
o GPS Receiver
o Dedicated 64 MHz Arm Cortex-M33
application processor
● Onboard antennas
● Rechargeable battery
● USB charging
● USB UART interface
● Audio DAC w/1W speaker amp
● Digital microphone
● RGB LED / beeper / User button
● Expansion interfaces: GPIO, UART, I2C, PWM and analog
o LTE CAT M1/NB-IoT Modem
o GPS Receiver
o Dedicated 64 MHz Arm Cortex-M33
application processor
● Onboard antennas
● Rechargeable battery
● USB charging
● USB UART interface
● Audio DAC w/1W speaker amp
● Digital microphone
● RGB LED / beeper / User button
● Expansion interfaces: GPIO, UART, I2C, PWM and analog
Sensors
● GPS location
● Cellular location
● Temperature
● Humidity
● Atmospheric pressure
● Indoor air quality
● VOC / RCO2 levels
● RGB light color
● Ambient light level
● 2D gesture detection
● LiDAR proximity (2m)
● PIR long range motion detection
● Sound level
● Magnet proximity
● Acceleration (3 axis)
● Orientation (3 axis)
● Electronic compass (3 axis)
● Shock & vibration
● Cellular location
● Temperature
● Humidity
● Atmospheric pressure
● Indoor air quality
● VOC / RCO2 levels
● RGB light color
● Ambient light level
● 2D gesture detection
● LiDAR proximity (2m)
● PIR long range motion detection
● Sound level
● Magnet proximity
● Acceleration (3 axis)
● Orientation (3 axis)
● Electronic compass (3 axis)
● Shock & vibration
Software
● Mobile app and web app ready
● MQTT broker ready
● Cloud hosted IoT Platform
● Customizable dashboards
● Relational and non-relational database
integration
● Custom reports for data analysis
● Third party API Integration for digital assistants like Amazon Alexa, Google Assistant or Apple Siri
● Configurable alerts and notifications via SMS, email or in-app push notifications
● MQTT broker ready
● Cloud hosted IoT Platform
● Customizable dashboards
● Relational and non-relational database
integration
● Custom reports for data analysis
● Third party API Integration for digital assistants like Amazon Alexa, Google Assistant or Apple Siri
● Configurable alerts and notifications via SMS, email or in-app push notifications
KIOTE/11 Dashboard
Data reported from KIOTE/11 devices
