KIOTE/11 Cellular IoT Prototyping Kit
KIOTE/11 is a cellular IoT development engine with all of the building blocks your team needs to quickly develop cellular IoT products from concept, through prototype and into production.
Designed for flexibility with a full suite of onboard sensors, KIOTE/11 can be deployed in a wide range of applications in record time.
Included Free 30 day trial for:
- Cloud based IoT platform with mobile & web dashboards
- Preloaded firmware for interactive and low power operation modes
- Unlimited LTE Cat M1 connectivity data plan in North America (Optional)
KIOTE/11 is a cellular IoT development engine with all of the building blocks your team needs to quickly develop cellular IoT products from concept, through prototype and into production.
Designed for flexibility with a full suite of onboard sensors, KIOTE/11 can be deployed in a wide range of applications in record time.
Included Free 30 day trial for:
- Cloud based IoT platform with mobile & web dashboards
- Preloaded firmware for interactive and low power operation modes
- Unlimited LTE Cat M1 connectivity data plan in North America (Optional)
KIOTE/11 is a cellular IoT development engine with all of the building blocks your team needs to quickly develop cellular IoT products from concept, through prototype and into production.
Designed for flexibility with a full suite of onboard sensors, KIOTE/11 can be deployed in a wide range of applications in record time.
Included Free 30 day trial for:
- Cloud based IoT platform with mobile & web dashboards
- Preloaded firmware for interactive and low power operation modes
- Unlimited LTE Cat M1 connectivity data plan in North America (Optional)
Technical Specifications
Nordic nRF9160 Low Power System-in-Package
LTE CAT M1/NB-IoT Modem
GPS Receiver
Dedicated 64 MHz Arm Cortex M33 application processor
Onboard antennas

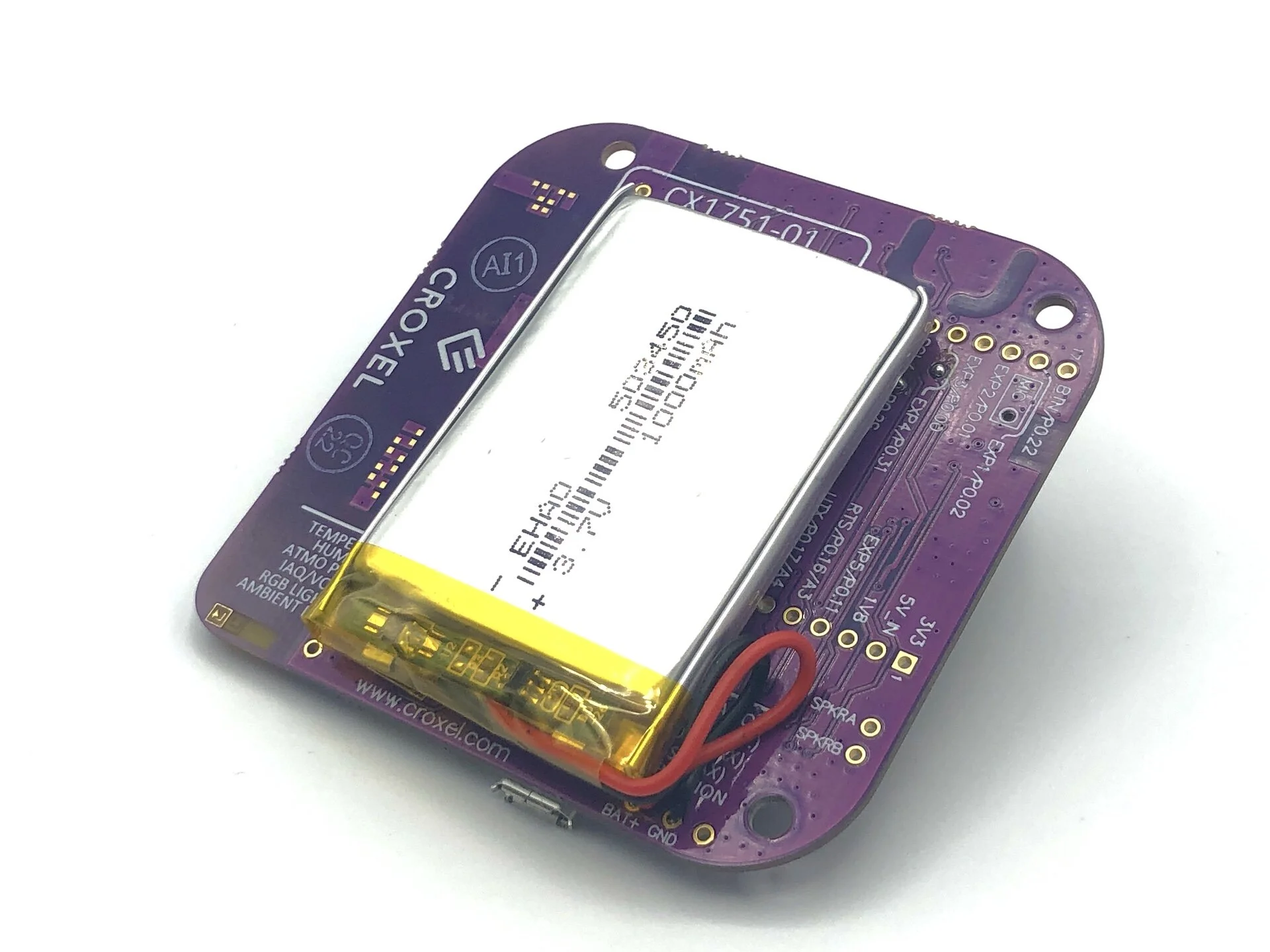

Rechargeable battery
USB charging
USB UART interface
Audio DAC w/1W speaker amplifier
RGB LED / beeper / User button
Expansion interfaces: GPIO, UART, I2C, PWM and analog
Sensing Features
Temperature, humidity and atmospheric pressure
RGB light color and ambient light level
LiDAR proximity (2m)

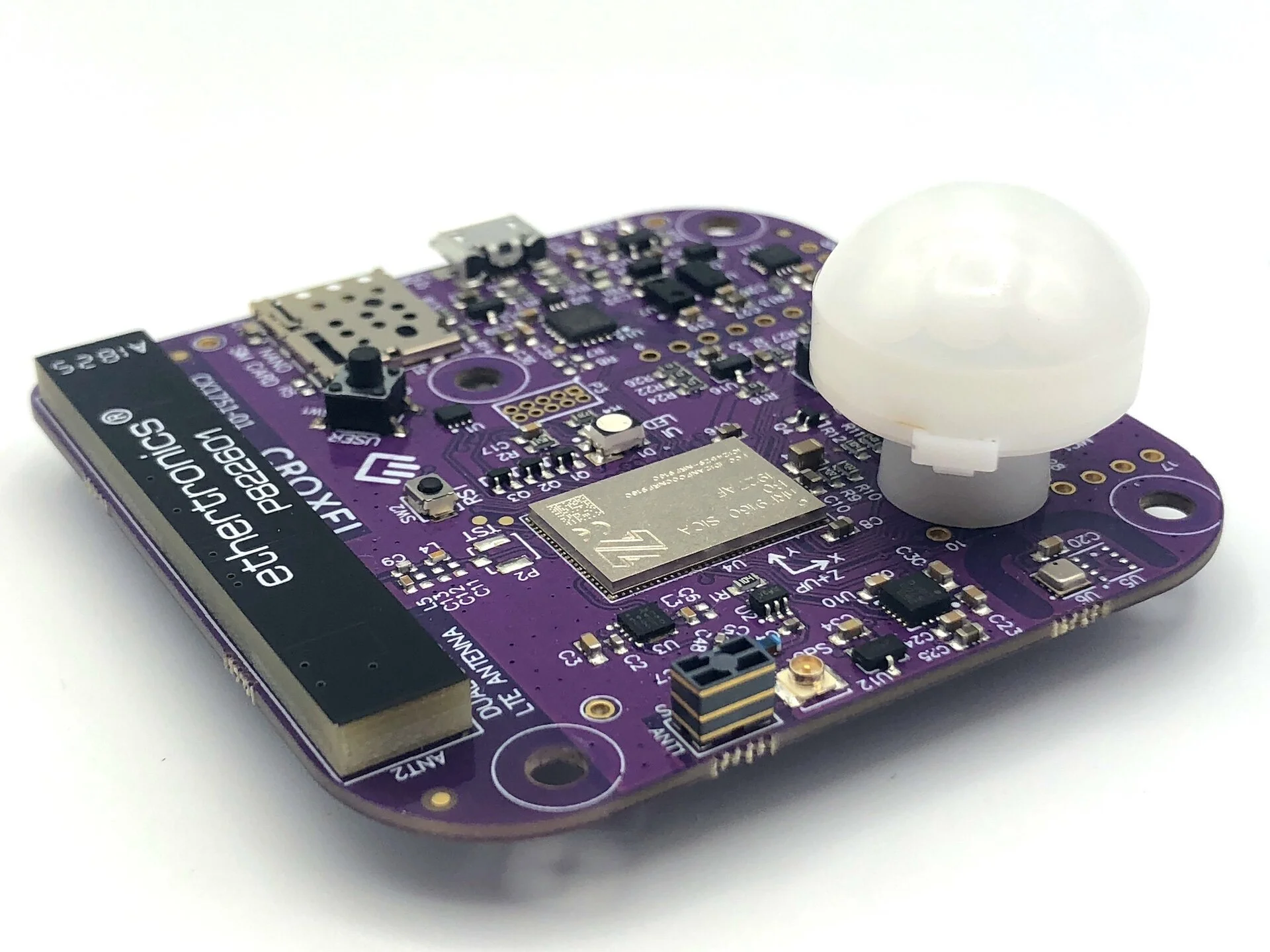

PIR long range motion detection
Magnet proximity
Acceleration & orientation (3 axis)
Electronic compass (3 axis)
